Nissan Sentra Service Manual: Battery terminal with fusible link

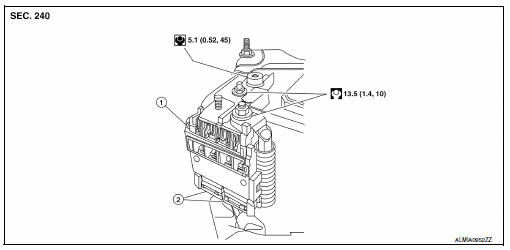

Exploded view


  1. Battery terminal with fusible link
  2. Harness connector

Removal and installation

Removal

Loosen the battery terminal nuts and disconnect both battery negative and positive terminals. Refer to pg-50, "exploded view".

Caution:

To prevent damage to the parts, disconnect the battery negative terminal first.

  1. Remove harness nut and battery terminal with fusible link nut.
  2. Disconnect harness connectors and remove battery terminal with fusible link.

Installation

Installation is in the reverse order of removal.

Caution:

To prevent damage to the parts, connect the battery positive terminal first.

Reset electronic systems as necessary. Refer to pg-7, "additional service when removing battery negative terminal : special repair requirement".
