Nissan Sentra Owners Manual: Keyfob (if so equipped)

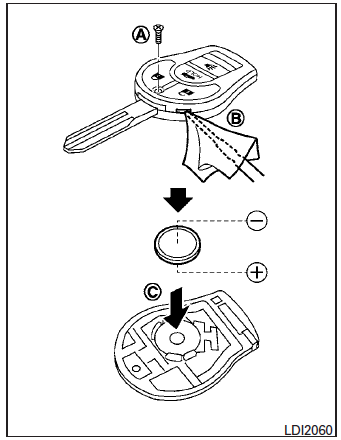

Replace the battery in the keyfob as follows:


Replace the battery in the keyfob as follows:

  1. Remove the screw A .
  2. Insert a small screwdriver into the slit of the corner B and twist it to separate the upper part from the lower part. Use a cloth to protect the casing.
  3. Replace the battery with a new one.

Recommended battery: CR1620 or equivalent.

  1. Close the lid and install the screw securely.
  2. Operate the buttons to check its operation.

See a NISSAN dealer if you need assistance for replacement.

If the battery is removed for any reason other than replacement, perform step 5.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

FCC Notice: For USA: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

NISSAN Intelligent Key® (if so equipped)


Battery replacement
CAUTION Be careful not to allow children to swallow the battery or removed parts. ...

NISSAN Intelligent Key® (if so equipped)

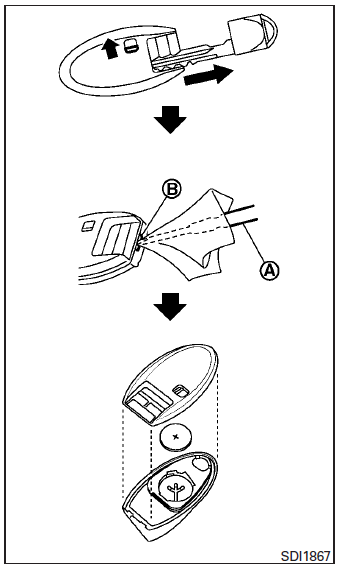

Replace the battery in the Intelligent Key as follows: Remove the mechanical key from the Intelligent Key. Insert a small screwdriver A into the slit B of the corner and twist it to separate ...
