Nissan Sentra Service Manual: Center console assembly

Nissan Sentra Service Manual / Body interior / Instrument panel / Removal and installation / Center console assembly

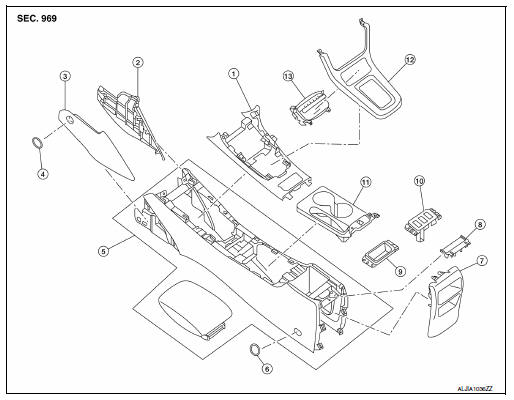

Exploded View


  1. Center console upper finisher
  2. Center console side finisher (RH)
  3. Center console side finisher (LH)
  4. Center console side finisher screw cover (LH/ RH)
  5. Center console assembly
  6. Center console screw cover (LH/ RH)
  7. Center console rear finisher
  8. Center console rear finisher cover
  9. Center console coin tray (if equipped)
  10. Heated seat switch finisher (if equipped)
  11. Center console cup holder finisher
  12. Shift selector finisher
  13. Storage bin

Removal and Installation

REMOVAL

  1. Remove the center console side finishers (1) (LH/RH).
  1. Remove the center console side finisher screw (A) (LH/RH).
  2. Release the clips using a suitable tool, then remove the center console side finisher.

Metal clip



  1. Remove the shift selector finisher (1).
  1. Remove cluster lid C lower. Refer to IP-20, "Removal and Installation - Cluster Lid C Lower".
  2. Remove the shift selector screws (A).
  3. Release the clips using a suitable tool, then remove the shift selector finisher.

Metal clip



  1. Release the center console cup holder finisher clips, then remove the center console cup holder finisher (1).

Metal clip



  1. Remove the center console screw cover (1) using a suitable tool and the center console screws (A) (LH/RH).


  1. Remove the remaining center console screws (A).


  1. Disconnect the harness connectors from the center console assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.
