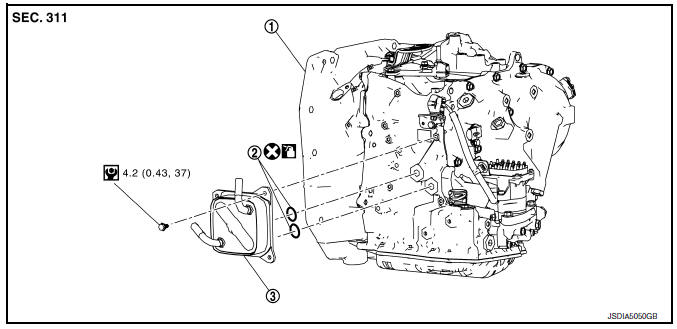

Exploded View

Transaxle assembly
O-ring
CVT oil warmer

Removal and Installation CVT fluid

Removal and Installation

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform these steps after the coolant temperature has cooled sufficiently.

Remove neighboring parts of CVT fluid warmer.
Remove CVT fluid warmer.
Remove O-ring.

INSTALLATION

Note the followings and install in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply CVT fluid to O-ring.

Inspection

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of engine coolant and CVT fluid.
Check CVT fluid level.
