Nissan Sentra Service Manual: Front door
Door assembly
Door assembly : removal and installation
CAUTION:
- Use two people when removing or installing the front door assembly
due to its heavy weight.
- When removing and installing front door assembly, support front
door using a suitable tool.
- Do not use air tools or electric tools for servicing.
- Before servicing, turn ignition switch OFF, disconnect both
battery terminals and wait at least three
minutes.
NOTE:
LH side shown; RH side similar.
REMOVAL
- Disconnect the battery negative and positive terminals and wait at least
three minutes, if equipped with
the side air bag (satellite) sensor. Refer to PG-50, "Removal and
Installation (Battery)".

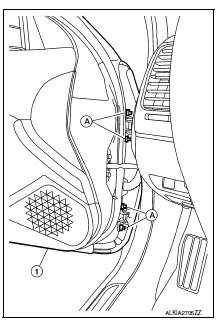

- Remove front door assembly harness grommet LH (1) then pull
out door harness from body (2).

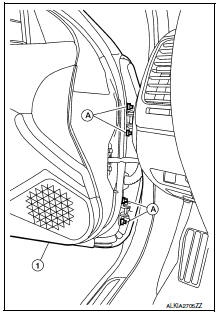

- Disconnect the harness connectors (A) from the front door
assembly harness.

- Remove check link bolt (body side).
- Remove front door assembly hinge nuts (A) (door side) and the
door assembly (1).

INSTALLATION
Installation is in the reverse order of removal.
Tighten door hinge nuts to specified torque.
CAUTION:
- After installation, check front door open/close, lock/unlock
operation.
- After installation, perform the front door adjustment procedure.
Refer to DLK-311, "DOOR ASSEMBLY
: Adjustment".
NOTE:
When main power window and door lock/unlock switch is removed or replaced,
it is necessary to perform the
initialization procedure. Refer to PWC-28, "Work Procedure".

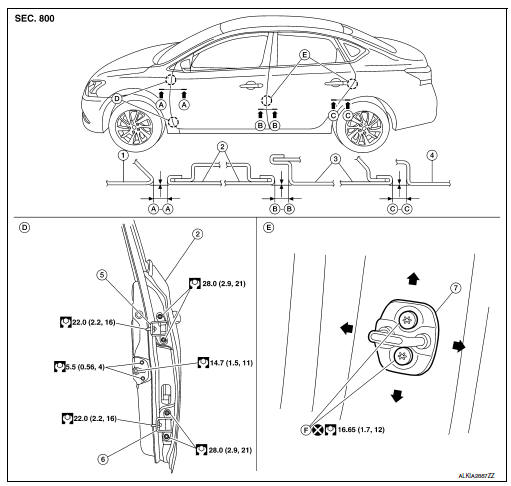

Door assembly : adjustment

- Front fender
- Front door assembly
- Rear door assembly
- Body side outer
- Front door upper hinge
- Front door lower hinge
- Front door striker
- Front door striker bolts

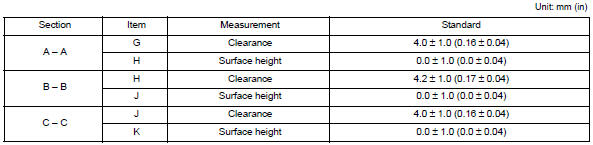

Check the clearance and surface height between front door and each part by
visual inspection and tactile feel.
If the clearance and the surface height are out of specification, adjust them
according to the adjustment procedure.

LONGITUDINAL CLEARANCE
- Remove the front fender. Refer to DLK-159, "Removal and Installation".
- Loosen the front door hinge to body bolts. Move the door forward or
backward as necessary until within
specifications provided.
- Tighten the hinge to body bolts to specified torque.
Front door hinge bolts 22.0 NВ·m (2.2 kg-m, 16 ft-lb)
- Install the front fender. Refer to DLK-159, "Removal and Installation".
Surface height adjustment
- Loosen the front door hinge nuts (a).
- Move the top and/or bottom of the door (1) in or out as necessary
until it is within specifications provided.
- Tighten the front door hinge nuts to specified torque.
Front door hinge nuts 28.0 NВ·m (2.9 Kg-m, 21 ftlb)

Caution:
- Check front door hinge rotating point for poor lubrication. If
necessary, apply a suitable multi-purpose
grease.
- After adjusting, apply touch-up paint (body color) to the head of
front door hinge bolts and nuts.
- If the clearance measurements cannot be corrected by adjusting the
front door assembly, adjust the
following as necessary.
- Front fender: refer to dlk-160, "adjustment".
- Rear door: refer to dlk-169, "door assembly : adjustment".
Door striker adjustment
Adjust front door assembly striker so that it becomes parallel with door lock
insertion direction.
Door hinge
Door hinge : removal and installation
Removal
- Remove front door assembly (2). Refer to DLK-309, "DOOR ASSEMBLY :
Removal and Installation".
- Remove bolt (a) and door hinge (1).
- Remove door hinge bolts (b) and remove hinge (1).

Installation
Installation is in the reverse order of removal.
Tighten front door hinge bolts to specified torque.Dlk-164, "door assembly :
adjustment"
Caution:
- Apply anticorrosive agent onto the front door hinge mating
surface.
- After installation, check front door open/close, lock/unlock
operation.
- After installation, perform the front door adjustment procedure.
Refer to dlk-311, "door assembly
: adjustment".
Door check link
Door check link : removal and installation
Removal
- Fully close the front door glass.
- Remove front door speaker. Refer to av-60, "removal and installation"
(base audio), av-205,
"removal and installation" (display audio with bose), av-124, "removal and
installation" (display
audio without bose) av-408, "removal and installation" (navigation with bose)
and av-
300, "removal and installation" (navigation without bose).
- Remove door check link bolt from body.
- Remove door check link bolts on door panel.
- Remove door check link (1) through the hole in door panel (2).

Installation
Installation is in the reverse order of removal.
Caution:
- After installation, check front door open/close, lock/unlock
operation.
- Check front door check link rotating point for poor lubrication.
If necessary, apply a suitable multipurpose
grease.
: Grease

Hood
Hood assembly
Hood assembly : exploded view
Hood hinge (LH/RH)
Hood assembly
Hood bumper rubber
Hood seal
Hood insulator
Hood support rod
Hood support rod clamp
Clip
...
Door assembly
Door assembly : removal and installation
Caution:
Use two people when removing or installing the rear door assembly
due to its heavy weight.
When removing and installing rear ...
