Nissan Sentra Service Manual: How to Check Terminal

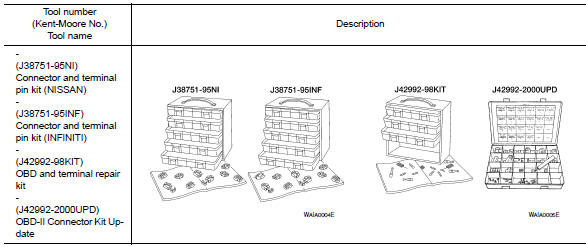

CONNECTOR AND TERMINAL PIN KIT

HOW TO PROBE CONNECTORS


HOW TO PROBE CONNECTORS

Probing from Harness Side

waterproof type) connector should be probedStandard type (not
waterproof type) connector should be probed from harness side with “T” pin.

Probing from Terminal Side

FEMALE TERMINAL






not have a notch above each terminal. To Some connectors do
not have a notch above each terminal. To probe each terminal, remove the connector retainer to make contact space for probing.







MALE TERMINAL

Dot not bend terminal. CAUTION:


Dot not bend terminal.

How to Check Enlarged Contact Spring of Terminal


  1. Assemble a male terminal and approx. 10 cm (3.9 in) of wire.

NOTE:

Use a male terminal which matches the female terminal.

  1. Disconnect the suspected faulty connector and hold it terminal side up.


  1. While holding the wire of the male terminal, try to insert the male terminal into the female terminal.

CAUTION:

Do not force the male terminal into the female terminal with your hands.

  1. While moving the connector, check whether the male terminal can be easily inserted or not.


Waterproof Connector Inspection


Waterproof Connector Inspection

If water enters the connector, it can short interior circuits. This may lead to intermittent problems.

Check the following items to maintain the original waterproof characteristics.

RUBBER SEAL INSPECTION

WIRE SEAL INSPECTION

Terminal Lock Inspection


Terminal Lock Inspection

Check for unlocked terminals by pulling wire at the end of connector.

An unlocked terminal may create intermittent signals in the circuit.
