Nissan Sentra Service Manual: Rear seat

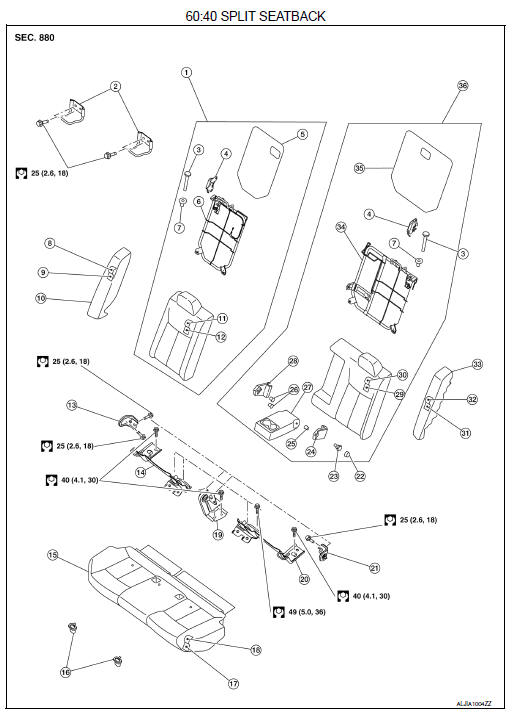

Exploded View

- Rear seatback assembly (rh)
- Seatback striker
- Seatback latch release knob
- Seatback latch assembly
- Seatback silencer (RH)
- Rear seatback frame (rh)
- Seatback latch release knob finisher
- Rear seat bolster trim (RH)
- Rear seat bolster pad (RH)
- Rear seat bolster (rh)
- Seatback trim (rh)
- Seatback pad (rh)
- Seatback hinge bracket (rh)
- LATCH bracket (RH)
- Seat cushion assembly
- Seat cushion hook
- Seat cushion pad
- Seat cushion trim
- Seatback hinge bracket (center)
- Latch bracket (lh)
- Seatback hinge bracket (lh)
- Armrest pivot bolt finisher
- Armrest pivot bolt
- Armrest hinge bracket
- Armrest bushing (lh)
- Armrest bushing (rh)
- Armrest assembly
- Armrest hinge finisher
- Seatback pad (lh)
- Seatback trim (LH)
- Rear seat bolster pad (lh)
- Rear seat bolster trim (lh)
- Rear seat bolster (LH)
- Rear seatback frame (lh)
- Seatback silencer (lh)
- Rear seatback assembly (lh)
Disassembly and Assembly
Seat cushion assembly

- Seat cushion pad
- Seat cushion trim
- Hook fastener
Hog ring
Disassembly
- Remove the seat cushion assembly. Refer to se-23, "removal and
installation - seat cushion assembly".
- Remove the hog rings on the bottom side of seat cushion assembly.
Note:
Remove all pieces of hog rings and discard them.
- Remove the hog rings on the top side of seat cushion and separate the
seat cushion trim from the seat
cushion pad.
Note:
Remove all pieces of hog rings and discard them.
Assembly
Assembly is in the reverse order of disassembly.
Caution:
- Make sure hog rings are correctly fastened around both the seat
cushion trim and seat cushion pad
wires.
- Replace any deformed or damaged hog rings.
- Make sure any old hog ring pieces are removed from seat.
Note:
- Install new hog rings on the seat cushion trim in original positions.
- Use only one hog ring in each designated location.

- When installing the seat cushion trim, firmly push down while sliding

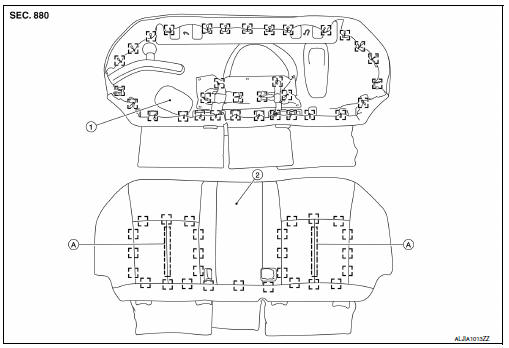

your hand along the seams as shown (
) to ensure the hook
fasteners below the seat cushion trim are fastened properly.

Rear seatback assembly (rh)
Disassembly
- Remove the rear seatback assembly (rh). Refer to se-23, "removal and
installation - 60:40 split seatback".
- Release the j-hook retainer (a) and unzip the seatback trim zippers
(b).

- Rotate the seatback latch release knob (1) counterclockwise
and remove.

- Reach up through the seatback pad and remove the seatback
latch release knob finisher as shown.
Caution:
Before installing the seatback release knob finisher, check
its orientation (front/rear and right/left).

- Remove the seatback trim and seatback pad as an assembly from the rear
seatback frame.
- Release cable end (B) from the seatback latch assembly (1),
remove two bolts (A) and the seatback latch assembly from the
rear seatback frame (2).

- Remove the hog rings and separate the seatback trim from the
seatback pad.
Hog ring
Note:
Remove all pieces of hog rings and discard them.

Assembly
Assembly is in the reverse order of disassembly.
Caution:
- Make sure hog rings are correctly fastened around both the
seatback trim and seatback pad wires.
- Replace any deformed or damaged hog rings.
- Make sure any old hog ring pieces are removed from seat.
Note:
- Install new hog rings on the seatback trim in original positions.
- Use only one hog ring in each designated location.

Rear seatback assembly (lh)
Disassembly
- Remove the rear seatback assembly (LH). Refer to SE-23, "Removal and
Installation - 60:40 Split Seatback".
- Remove the armrest assembly. Refer to se-23, "removal and installation -
armrest assembly".
- Rotate the seatback latch release knob (1) counterclockwise
and remove.

- Reach up through the seatback pad and remove the seatback
latch release knob finisher as shown.
Caution:
Before installing the seatback release knob finisher, check
its orientation (front/rear and right/left).

- Release the J-clip retainers (A) and remove the seatback trim
and seatback pad as an assembly from the rear seatback frame
(1).

- Release cable end (b) from the seatback latch assembly (1),
remove two bolts (a) and the rear seatback latch assembly from
the rear seatback frame (2).

- Remove the hog rings and separate the seatback trim from the
seatback pad.
Hog ring
Note:
Remove all pieces of hog rings and discard them.

Assembly
Assembly is in the reverse order of disassembly.
Caution:
- Make sure hog rings are correctly fastened around both the
seatback trim and seatback pad wires.
- Replace any deformed or damaged hog rings.
- Make sure any old hog ring pieces are removed from seat.
Note:
- Install new hog rings on the seatback trim in original positions.
- Use only one hog ring in each designated location.

Driver side
DRIVER SIDE : Exploded View
Driver side
Headrest
Headrest holder (locked)
Headrest holder (free)
Seatback silencer
Seatback trim
Seatback pad
Seat belt buckle
S ...
