Nissan Sentra Service Manual: Removal and installation

Nissan Sentra Service Manual / Driver information & multimedia / Audio, visual & navigation system / Navigation without bose / Removal and installation

Av control unit

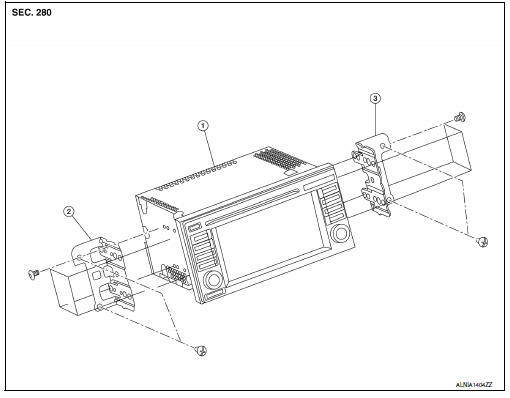

Exploded view


  1. Av control unit
  2. Av control unit bracket (lh)
  3. Av control unit bracket (rh)

Removal and installation

Removal

Caution:

  1. Disconnect the negative battery terminal. Refer to pg-50, "removal and installation (battery)".
  2. Remove cluster lid C lower. Refer to IP-20, "Removal and Installation - Cluster Lid C Lower".
  3. Remove the av control unit screws, then pull out the av control unit.
  4. Disconnect the harness connectors from the av control unit and remove.

Installation

Installation is in the reverse order of removal.

Caution:

When replacing av control unit, perform "write configuration". Refer to av-252, "configuration (av control unit) : configuration list".

Front tweeter

Removal and installation

Removal

  1. Remove the front pillar finisher. Refer to int-24, "front pillar finisher : removal and installation".
  2. Disconnect the harness connector (b) from the front tweeter speaker.
  3. Remove the front tweeter speaker screw (A) from the front tweeter speaker (1) and remove.

Installation


Installation

Installation is in the reverse order of removal.

Front door speaker

Removal and installation

Removal

  1. Remove the front door finisher. Refer to int-15, "removal and installation".
  2. Remove the front door speaker screws (b).
  3. Disconnect the harness connector (a) from the front door speaker (1) and remove.

Installation


Installation

Installation is in the reverse order of removal.

Rear speaker

Removal and installation

REMOVAL

  1. Remove the rear parcel shelf finisher. Refer to INT-33, "Removal and Installation".
  2. Remove the rear speaker screws (A).
  3. Disconnect the harness connector from the rear speaker (1) and remove.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Steering switch

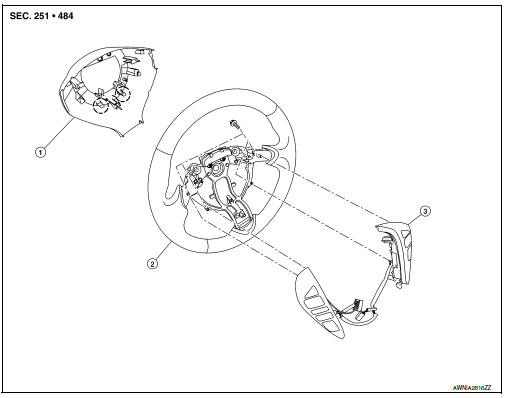

Exploded view


  1. Steering wheel rear finisher
  2. Steering wheel
  3. Steering switches

Removal and installationPawl


Removal and installation

REMOVAL

  1. Remove the steering wheel. Refer to ST-10, "Removal and Installation".
  2. Release the pawls on the steering wheel rear finisher and remove.
  3. Remove the steering switches screws (A).
  4. Remove the steering switches (1) from steering wheel (2).

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Antenna feeder

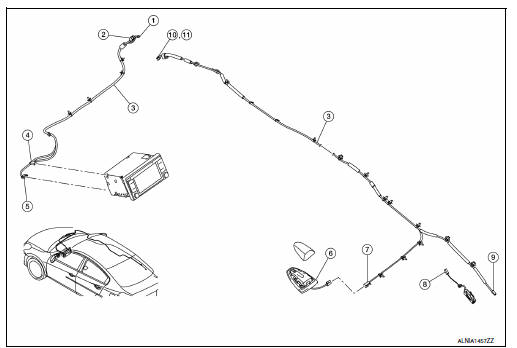

Location of Antenna


  1. M112
  2. M107
  3. Antenna feeder
  4. M142
  5. M144
  6. Satellite antenna
  7. M504
  8. M503
  9. M502
  10. M500
  11. M501

Window Antenna Repair

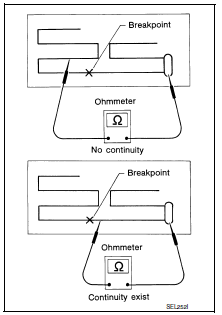

ELEMENT CHECK

  1. Attach probe circuit tester (ohm setting) to antenna terminal on each side.



  1. If an element is broken, no continuity will exist.


  1. To locate a break, move probe along element. Tester indication will change abruptly when probe passes the broken point.

REPAIR EQUIPMENT


REPAIR EQUIPMENT

REPAIRING PROCEDURE

  1. Wipe broken heat wire and its surrounding area clean with a cloth dampened in alcohol.
  2. Apply a small amount of conductive silver composition to tip of drawing pen.

    Shake silver composition container before use.

  3. Place ruler on glass along broken line. Deposit conductive silver composition on break with drawing pen. Slightly overlap existing heat wire on both sides [preferably 5 mm (0.20 in)] of the break.


  1. After repair has been completed, check repaired wire for continuity.

    This check should be conducted 10 minutes after silver composition is deposited.

    Do not touch repaired area while test is being conducted.


  1. Apply a constant stream of hot air directly to the repaired area for approximately 20 minutes with a heat gun. A minimum distance of 3 cm (1.2 in) should be kept between repaired area and hot air outlet.

    If a heat gun is not available, let the repaired area dry for 24 hours.

Antenna amp


Antenna amp

Removal and installation

REMOVAL

  1. Remove the rear pillar finisher (RH). Refer to INT-29, "REAR PILLAR FINISHER : Removal and Installation".
  2. Disconnect the antenna amp. harness connector (A) from the rear window glass.
  3. Disconnect the harness connector (C) from the antenna amp.

    (1).

  4. Remove the antenna amp. screw (B) and the antenna amp. (1).

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Usb connector and aux jack

Removal and installation

Removal

  1. Remove the center console rear finisher cover. Refer to TM-253, "Exploded View".
  2. Release the pawls and remove the USB connector and aux jack (1) from the center console rear finisher cover.

: Front Pawl


: Front


Installation


Installation

Installation is in the reverse order of removal.

Window antenna

Removal and Installation

The window antenna is serviced as an assembly with the filament. Refer to DEF-47, "Inspection and Repair".

Satellite radio antenna

Removal and Installation

REMOVAL

  1. Lower the headlining at the rear. Refer to INT-38, "Exploded View".
  2. Remove the satellite radio antenna nut (A).
  3. Disconnect the harness connector (B) from the satellite radio antenna (1) and remove.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Gps antenna

Removal and installation

REMOVAL

  1. Remove the combination meter. Refer to MWI-77, "Removal and Installation".
  2. Remove the AV control unit. Refer to AV-298, "Removal and Installation".
  3. Remove the screw (A) from the GPS antenna (1).


  1. Release the harness clips (A) from the instrument panel (1) and remove the GPS antenna.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Microphone

Removal and Installation

REMOVAL

  1. Remove the front room/map lamp assembly. Refer to INL-52, "Removal and Installation".
  2. Disconnect the microphone connector (A) from the front room/ map lamp assembly (2).
  3. Release the microphone pawls, then remove the microphone (1).

: Pawl


INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Rear view camera

Removal and Installation

REMOVAL

  1. Remove trunk lid finisher. Refer to INT-45, "Removal and Installation".
  2. Disconnect the harness connector (A) from rear view camera (1).
  3. Remove the license lamp finisher. Refer to EXT-44, "Removal and Installation".
  4. Push the rear view camera (1) in direction shown ( pull ) and
    pull out to remove.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.
