Nissan Sentra Service Manual: System description

Component parts

Body control system

Body control system : component parts location

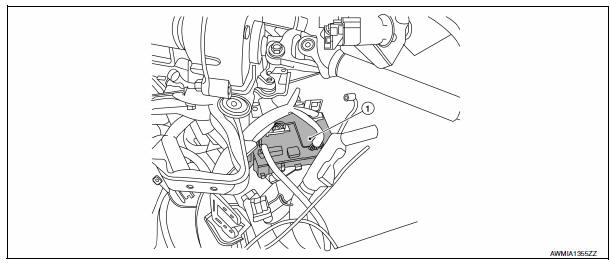

  1. BCM (view with instrument panel removed)

Combination switch reading system

Combination switch reading system : component parts location

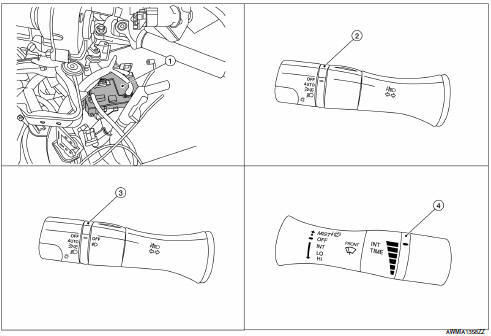

  1. BCM (view with combination meter removed)
  2. Combination switch (lighting and turn signal) (without fog lamps)
  3. Combination switch (lighting and turn signal) (with fog lamps)
  4. Combination switch (wiper and washer)

Power consumption control system

Power consumption control system : component parts location

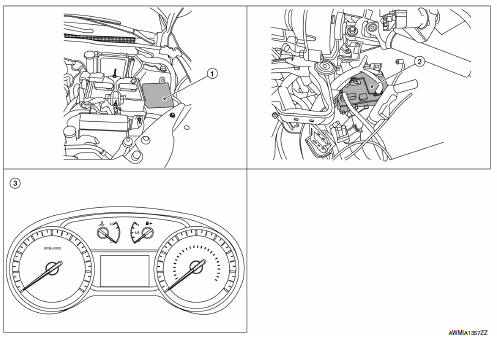

  1. IPDM E/R
  2. BCM (view with instrument panel removed)
  3. Combination meter
Precaution
Precaution for supplemental restraint system (srs) "air bag" and "seat belt pre-tensioner" The supplemental restraint system such as “air bag” and “seat belt pre- ...

System
Body control system Body control system : system description OUTLINE BCM (Body Control Module) controls the various electrical components. It inputs the information required to the control ...
