Nissan Sentra Service Manual: System description

Component parts

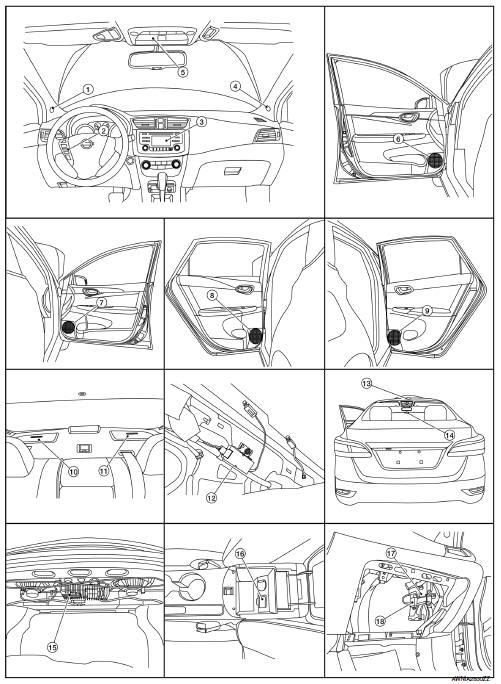

Component parts location

1. Front tweeter LH
2. Steering switches
3. Audio unit
4. Front tweeter RH
5. Microphone
6. Front door speaker LH
7. Front door speaker RH
8. Rear door speaker LH
9. Rear door speaker RH
10. Rear woofer RH
11. Rear woofer LH
12. Antenna amp.
13. Satellite antenna
14. Window antenna
15. Bose speaker amp.
16. USB interface
17. BluetoothВ® control unit
18. BluetoothВ® antenna

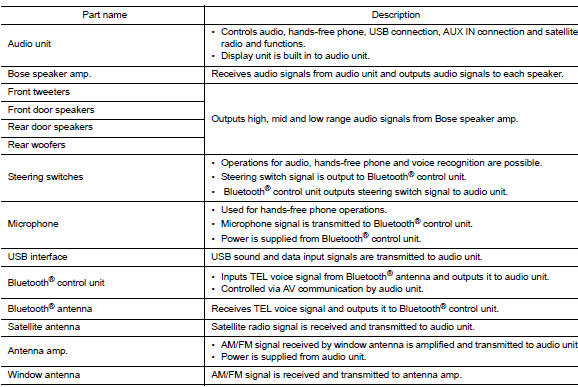

Component description

System

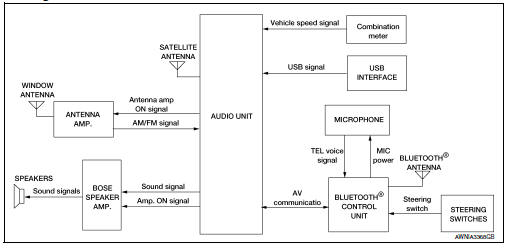

System Diagram

System Description

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit
• Bose speaker amp.
• Front tweeters
• Front door speakers
• Rear door speakers
• Rear woofers
• Steering switches
• USB interface
• satellite antenna
• Antenna amp
• Window antenna

When the audio system is on, AM/FM signals received by the window antenna are amplified by the antenna amp. and sent to the audio unit. The audio unit then sends audio signals to the Bose speaker amp. The Bose speaker amp. then sends audio signals to the front tweeters, front door speakers, rear door speakers and rear woofers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the BluetoothВ® telephone system.

The BluetoothВ® telephone system allows users who have a BluetoothВ® cellular telephone to make a wireless connection between their cellular telephone and the BluetoothВ® control unit. Hands-free cellular telephone calls can be sent and received. Some BluetoothВ® cellular telephones may not be recognized by the BluetoothВ® control unit. When a cellular telephone or the BluetoothВ® control unit is replaced, the telephone must be paired with the BluetoothВ® control unit. Different cellular telephones may have different pairing procedures, refer to the cellular telephone operating manual.

Refer to the Owner's Manual for BluetoothВ® telephone system operating instructions.

When the ignition switch is turned to ACC or ON, the BluetoothВ® control unit will power up. During power up, the BluetoothВ® control unit is initialized and performs various self-checks. Initialization may take up to 20 seconds.

If a phone is present in the vehicle and paired with the BluetoothВ® control unit, Nissan Voice Recognition will then become active. BluetoothВ® telephone functions can be turned off using the Nissan Voice Recognition system.

Steering Switches

When buttons on the steering switches are pushed, the resistance in steering wheel audio control switch circuit changes, depending on which button is pushed. The BluetoothВ® control unit uses this signal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering switches:

• Initiate self-diagnosis of the BluetoothВ® telephone system
• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume of calls

Microphone

The microphone is located in the roof console assembly. The microphone sends a signal to the BluetoothВ® control unit. The microphone can be actively tested during self-diagnosis.

Audio Unit

The audio unit receives signals from the BluetoothВ® control unit and sends audio signals to the Bose speaker amp. The Bose speaker amp. then sends the audio signals to the speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control level can be selected by the customer. Refer to Owner's Manual for operating instructions.

Diagnosis system (audio unit)

Description

The audio unit on board diagnosis performs the functions listed in the table below:

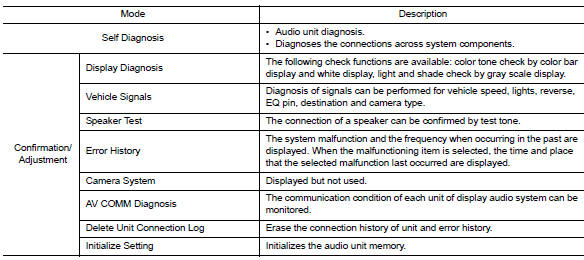

On Board Diagnosis Function

METHOD OF STARTING

1. Turn the ignition ON.
2. Turn the audio system OFF.
3. While pressing the preset 1 button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. Shifting from current screen to previous screen is performed by pressing BACK button.

4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.

SELF DIAGNOSIS MODE

Audio Unit Self Diagnosis

1. Select Self Diagnosis.
2. Self diagnosis screen is displayed. The bar graph visible in center of screen indicates progress of self diagnosis.
3. Diagnosis results are displayed after the self diagnosis is completed.

   The unit names and the connection lines are color coded according to the diagnostic results.

1: Control unit (audio unit) is displayed in red.

• Replace audio unit if Self Diagnosis did not run because control unit malfunction is indicated. The symptom is audio unit internal error. Refer to AV-203, "Removal and Installation".
• If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > gray.

4. Comments of self diagnosis results can be viewed in the diagnosis result screen.

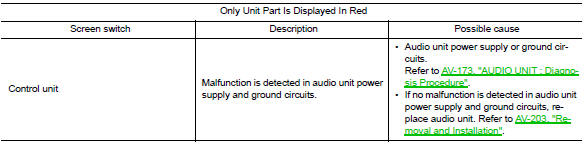

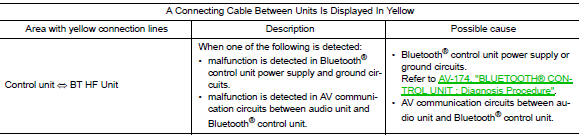

Audio Unit Self Diagnosis Results

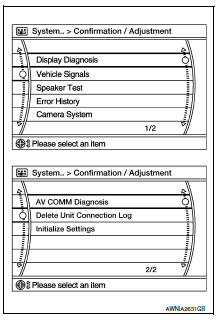

Audio Unit Confirmation/Adjustment

1. Select Confirmation/Adjustment.
2. Select each switch on the Confirmation/Adjustment screen to display the relevant trouble diagnosis screen. Press the BACK switch to return to the initial Confirmation/Adjustment screen.

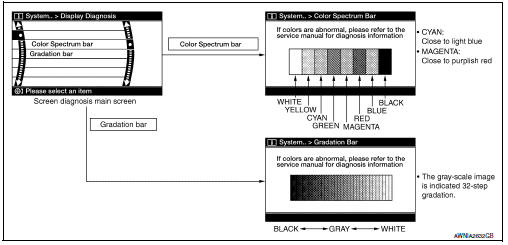

Display Diagnosis

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Speaker Test

Select Speaker Test to display the Speaker Diagnosis screen. Press Start to generate a test tone in a speaker. Press Start again to generate a test tone in the next speaker. Press End to stop the test tones.

Error History

The self diagnosis results are judged depending on whether any error occurs from when Self Diagnosis is selected until the self diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned ON and then no error has occurred until the self diagnosis start. Check the Error Record to detect any error that may have occurred before the self diagnosis start because of this situation.

The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

• The counter is set to 40 if an error occurs. 1 is subtracted from the counter if the condition is normal at a next ignition ON cycle.
• The counter lower limit is 1. The counter can be reset (no error record display) with the Delete log switch.

Count up method B

• The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even if the condition is normal at the next ignition ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the Delete log switch.

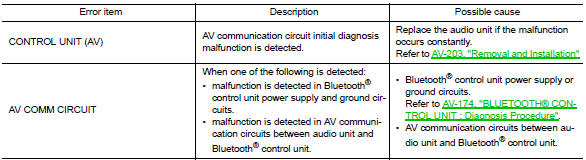

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

AV COMM Diagnosis

• Displays the communication status between audio unit (master unit) and BluetoothВ® control unit.
• The error counter displays OK if any malfunction was not detected in the past and displays 0 if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle.

  The upper limit of the counter is 39.

• The error counter is erased if Reset is pressed.

NOTE:

“???” indicates UNKWN.

Delete Unit Connection Log

Deletes any unit connection records and error records from the audio unit memory (clears the records of the unit that has been removed).

Initialize Settings

Deletes data stored from the audio unit.

Diagnosis system (bluetoothВ® control unit)

Diagnosis Description

The BluetoothВ® control unit has two diagnostic checks. The first diagnostic check is performed automatically every ignition cycle during control unit initialization. The second diagnostic check is performed by the technician using the steering wheel audio control switches prior to trouble diagnosis.

BluetoothВ® CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure
• BluetoothВ® antenna connection open or shorted
• Steering wheel audio control switches [ (PHONE/SEND),
  ( PHONE/END)]
  stuck closed
• Vehicle speed pulse count
• Microphone connection test (with playback to operator)
• BluetoothВ® inquiry check

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.
2. Wait for the BluetoothВ® system to complete initialization. This may take up to 20 seconds.
3. Press and hold the steering wheel audio control switch
   (PHONE/SEND) button for at least 5 seconds. The BluetoothВ® system will begin to play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel audio control switch (PHONE/END) button
   until you hear the “Diagnostics mode” prompt. The Bluetooth® system will sound a 5-second beep.
5. While the beep is sounding, press and hold the steering wheel audio control switch (PHONE/END) button
   again until you hear prompts.

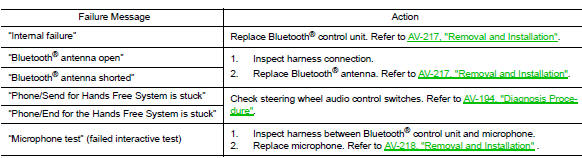

6. The BluetoothВ® system has now entered into the diagnostic mode. Results of the diagnostic checks will be verbalized to the technician. Refer to AV-148, "Work Flow".
7. After the failure records are reported, an interactive microphone test will be performed. Follow the voice prompt. If the microphone test fails, refer to AV-148, "Work Flow".

Work Flow
