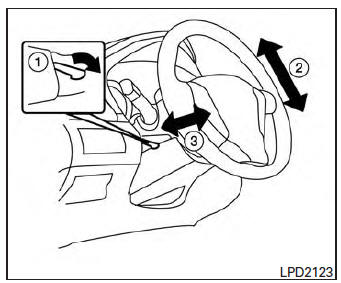

Pull the lock lever down 1 and adjust the steering wheel up or down 2 to the desired position.
Push the lock lever up 1 firmly to lock the steering wheel in place.
WARNING Do not adjust the steering wheel while driving. You could lose control of your vehicle and cause an accident. |
