Body Center Marks

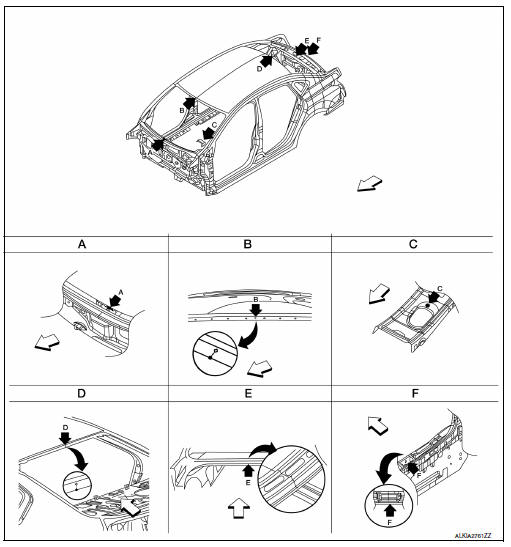

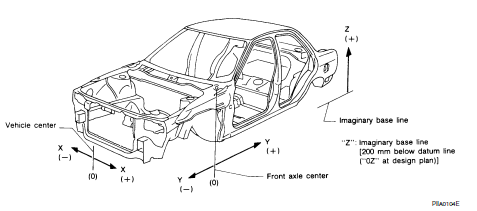

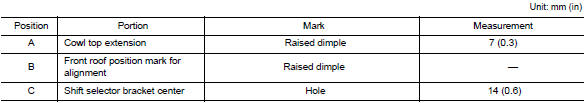

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts damaged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective repair will be possible by using these marks together with body alignment specifications.
Front
Description
- All dimensions indicated in the figures are actual.
- When using a tram gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
- When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
- Measurements should be taken at the center of the mounting holes.
- The value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
- The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
Engine Compartment

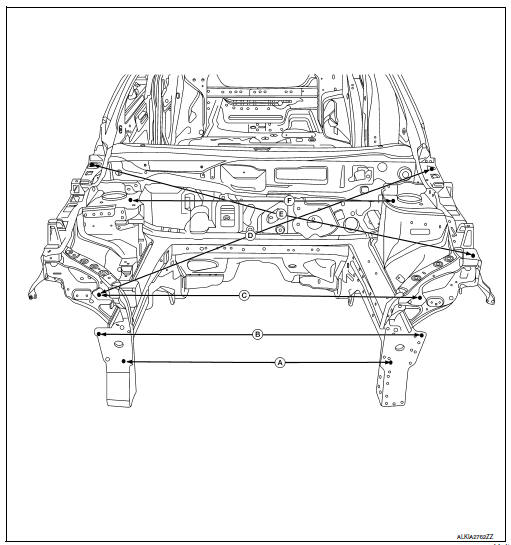

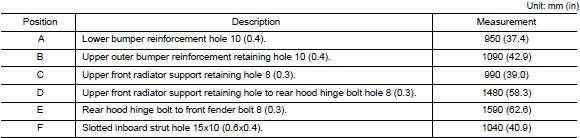

Measurement

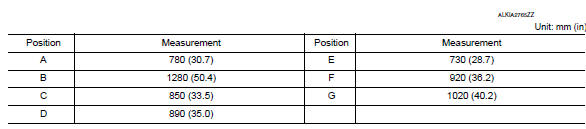

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.
Underbody

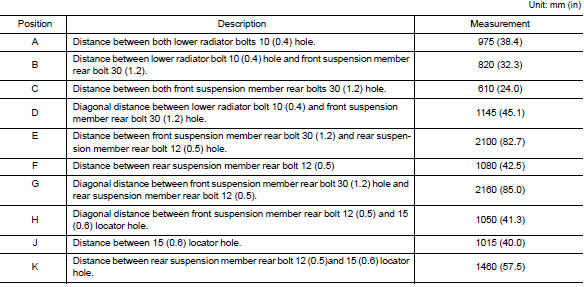

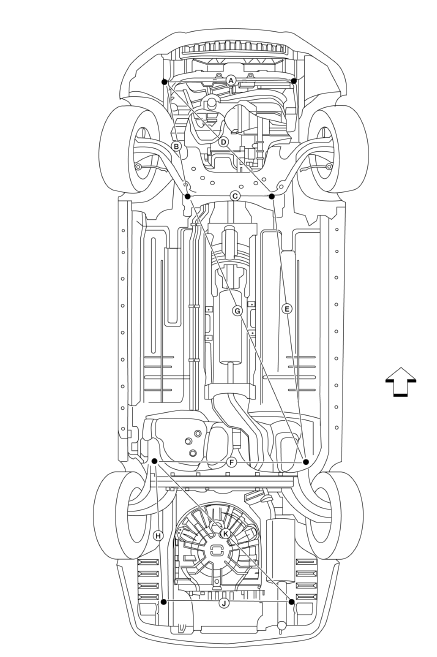

Measurement
Front
NOTE:
- All dimensions indicated in the figure are actual.
- As viewed from underside.
The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.
Passenger Compartment
Measurement

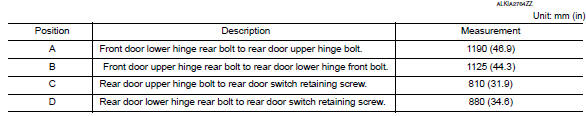

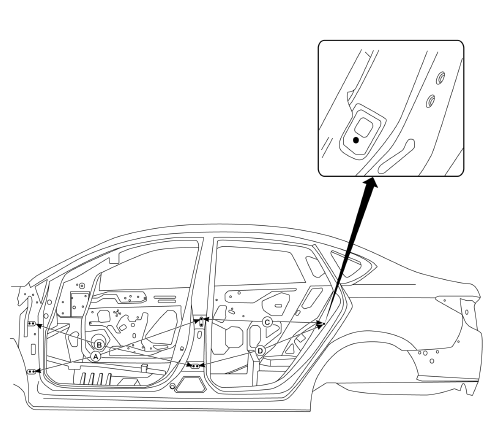

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

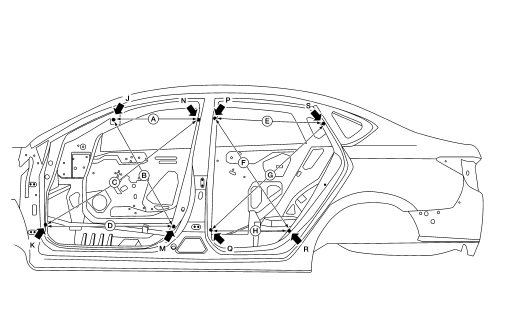

Measurement Points

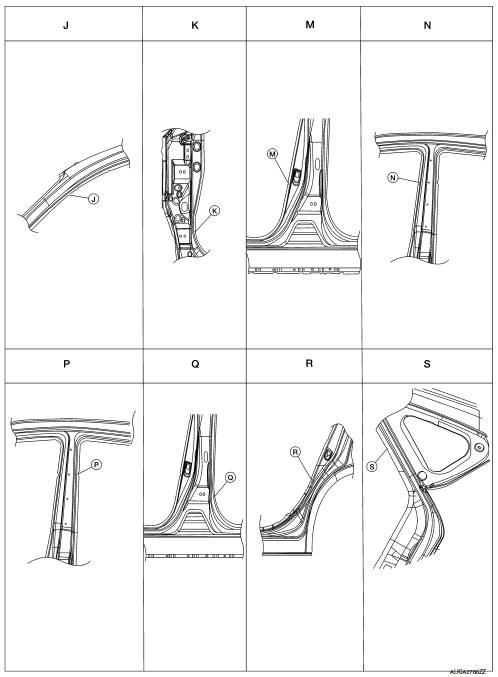

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.
The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.
Rear End Panel

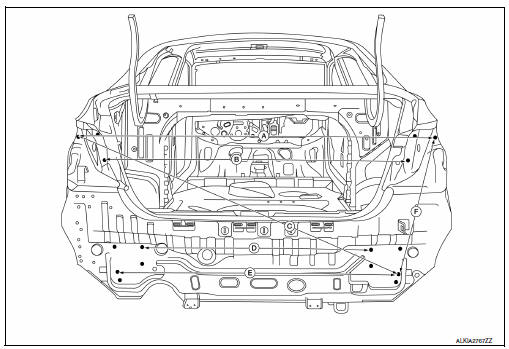

Measurement
Handling precautions for plastics
Precautions for plastics
When repairing and painting a portion of the body adjacent to plastic
parts, consider their characteristics
(influence of heat and solvent) and remove them if nec ...
