Symptom Table

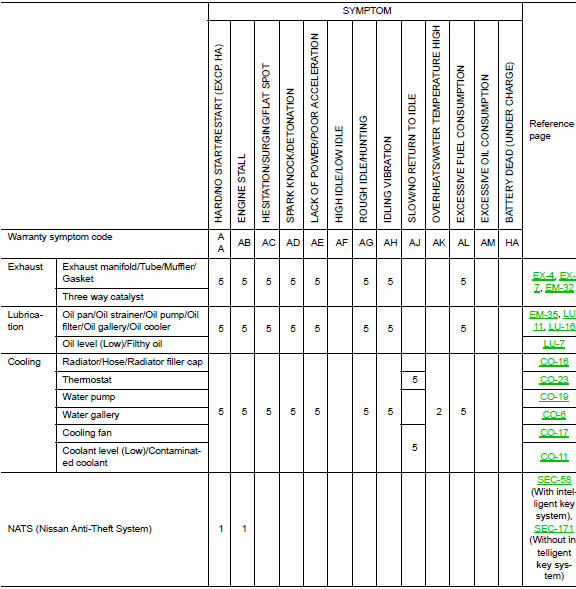

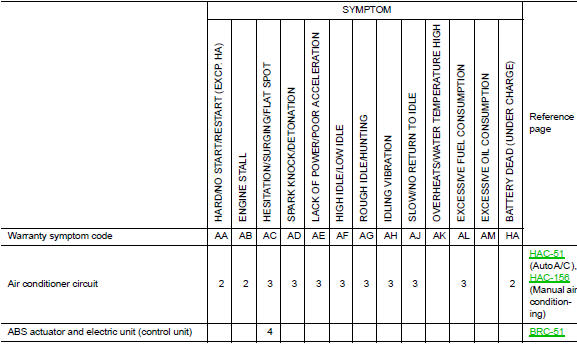

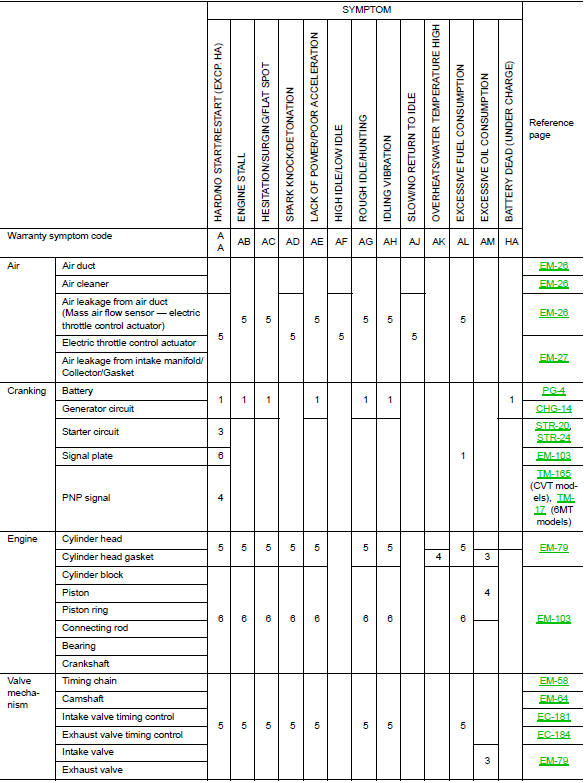

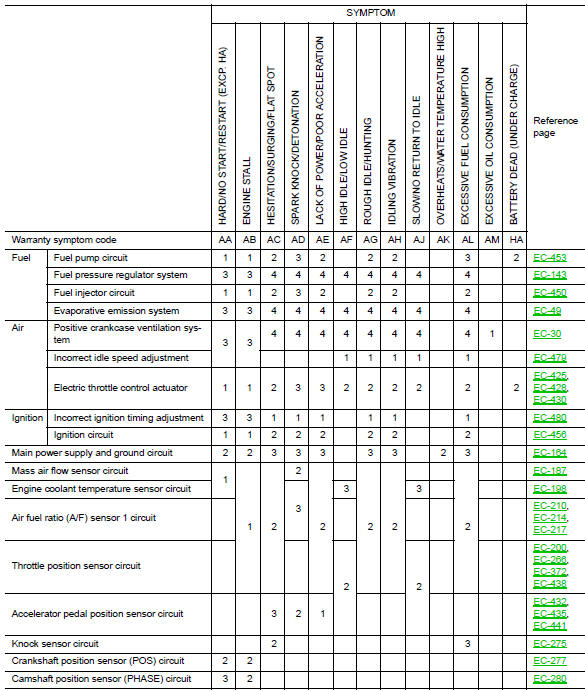

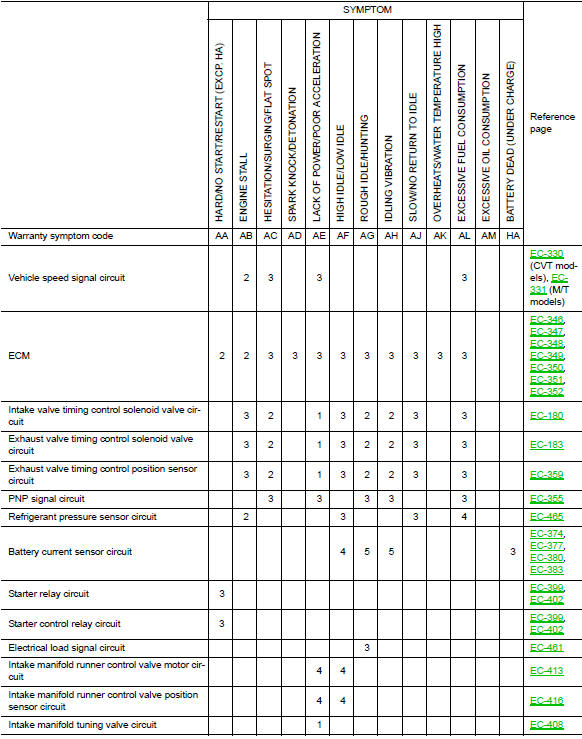

SYSTEM — BASIC ENGINE CONTROL SYSTEM



1 - 6: The numbers refer to the order of inspection.
(continued on next table)

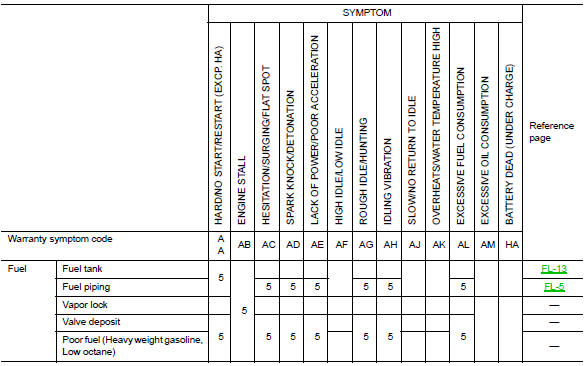

SYSTEM — ENGINE MECHANICAL & OTHER



1 - 6: The numbers refer to the order of inspection.
Normal operating conditionM&A branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the combination meter for damage,
bend and loose connection
(unit side and connector side).
Is the inspection result nor ...
Turn signal lamp circuit
Description
The bcm monitors inputs from the combination switch to determine when to
activate the turn signals. The
bcm outputs voltage direction to the left and right turn signals during turn
signal operation or both during hazard
warning operation. The bcm sends a turn signal indicator req ...
Sensor rotor
Front sensor rotor
FRONT SENSOR ROTOR : Removal and Installation
The front wheel sensor rotor is an integral part of the wheel
hub and bearing assembly and cannot be disassembled.
Refer to FAX-8, "Removal and Installation".
Rear sensor rotor
REAR SENSOR ROTOR : Removal and Install ...
