Nissan Sentra Service Manual: Front seat

Driver side

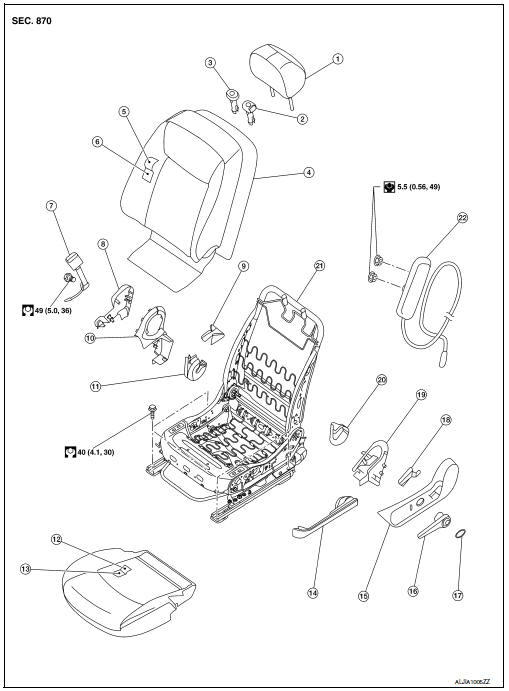

DRIVER SIDE : Exploded View

Driver side
Driver side

  1. Headrest
  2. Headrest holder (locked)
  3. Headrest holder (free)
  4. Seatback silencer
  5. Seatback trim
  6. Seatback pad
  7. Seat belt buckle
  8. Seat cushion outer finisher (RH)
  9. Slide cover (RH)
  10. Seat cushion inner finisher (RH)
  11. Recline mechanism cover (RH)
  12. Seat cushion trim
  13. Seat cushion pad
  14. Slide cover (LH)
  15. Seat cushion outer finisher (LH)
  16. Lift lever
  17. Lift lever finisher
  18. Recline lever
  19. Seat cushion inner finisher (LH)
  20. Recline mechanism cover (LH)
  21. Seat frame assembly
  22. Side air bag module

DRIVER SIDE : Removal and Installation - Seat Assembly

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

  1. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to PG-50, "Removal and Installation (Battery)".
  2. Slide the seat to the full forward position.
  3. Remove the two rear seat bolts.
  4. Slide the seat to the full rearward position.
  5. Remove the two front seat bolts.
  6. Tilt the seat rearward to disconnect the harness connectors from the seat and remove

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

NOTE:

LH front seat bolt torque : 40 NВ·m (4.1 kg-m, 30 ft-lb)

Passenger side


Passenger side

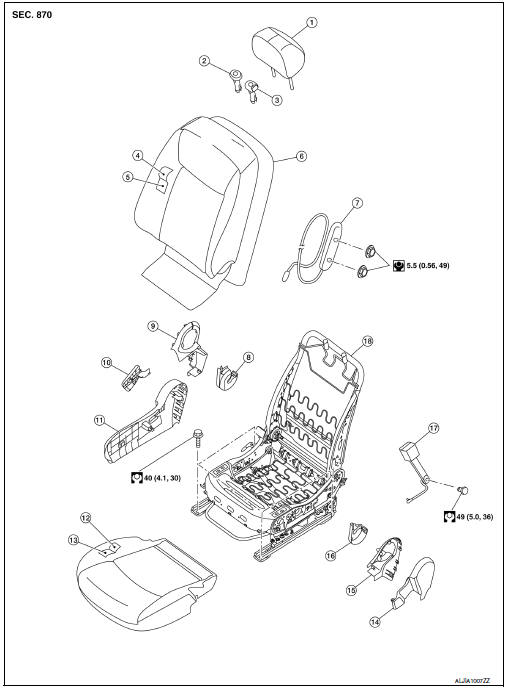

PASSENGER SIDE : Exploded View

Passenger side
Passenger side

  1. Headrest
  2. Headrest holder (free)
  3. Headrest holder (locked)
  4. Seatback trim
  5. Seatback pad
  6. Seatback silencer
  7. Side air bag module
  8. Recline mechanism cover (RH)
  9. Seat cushion inner finisher (RH)
  10. Recline lever
  11. Seat cushion outer finisher (RH)
  12. Seat cushion trim
  13. Seat cushion pad
  14. Seat cushion outer finisher (LH)
  15. Seat cushion inner finisher (LH)
  16. Recline mechanism cover (LH)
  17. Seat belt buckle
  18. Seat frame assembly

PASSENGER SIDE : Removal and Installation - Seat Assembly

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

  1. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to PG-50, "Removal and Installation (Battery)"
  2. Slide the seat to the full forward position.
  3. Remove the two rear seat bolts.
  4. Slide the seat to the full rearward position.
  5. Remove the two front seat bolts.
  6. Tilt the seat rearward to disconnect the harness connectors from the seat and remove.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

RH front seat bolt torque : 40 NВ·m (4.1 kg-m, 30 ft-lb)

Heated seat switch


Heated seat switch

HEATED SEAT SWITCH : Removal and Installation

REMOVAL

  1. Remove the shift selector finisher. Refer to IP-17, "Removal and Installation".
  2. Remove the screws (A) and the front heated seat switch finisher (1) from the center console assembly.


  1. Disconnect the harness connectors from the front heated seat switches.
  2. Release the pawls (A) using a suitable tool and remove the front heated seat switches (1) from the front heated seat switch finisher.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Removal and installation
...
