Nissan Sentra Service Manual: Moonroof motor assembly

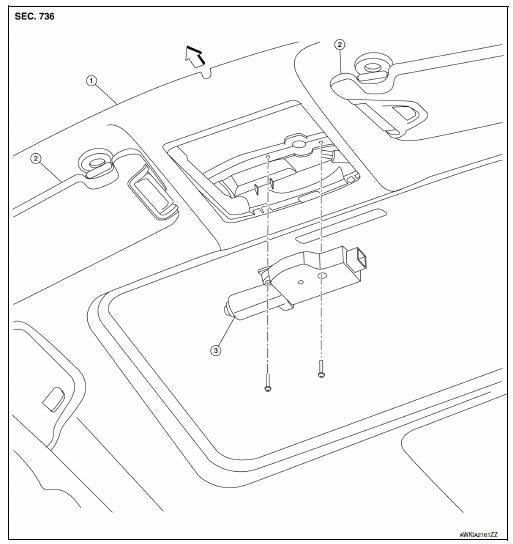

Exploded view


  1. Headlining
  2. Sun visor
  3. Moonroof motor assembly

Removal and installationFront


Removal and installation

REMOVAL

  1. Close the glass lid.
  2. Remove the map lamp. Refer to INL-52, "Removal and Installation".
  3. Remove the moonroof motor bolts (A).

Front


  1. Disconnect the harness connector and remove the moonroof motor assembly (1).

CAUTION:

Do not run the removed moonroof motor assembly as a single unit.

INSTALLATION


INSTALLATION

  1. Move moonroof motor assembly laterally little by little so that the gear is completely engaged into the wire on the moonroof unit assembly, and the surfaces become parallel. Install the bolts and tighten.

CAUTION:

Before installing the motor, be sure to place the link and wire assembly in the symmetrical and fully closed position.

NOTE:

If necessary, insert a suitable tool into the drive key and rotate right or left slightly to assist in complete moonroof motor gear alignment

  1. Remainder of installation is in the reverse order of removal.
  2. Synchronize moonroof motor assembly with moonroof unit assembly.
